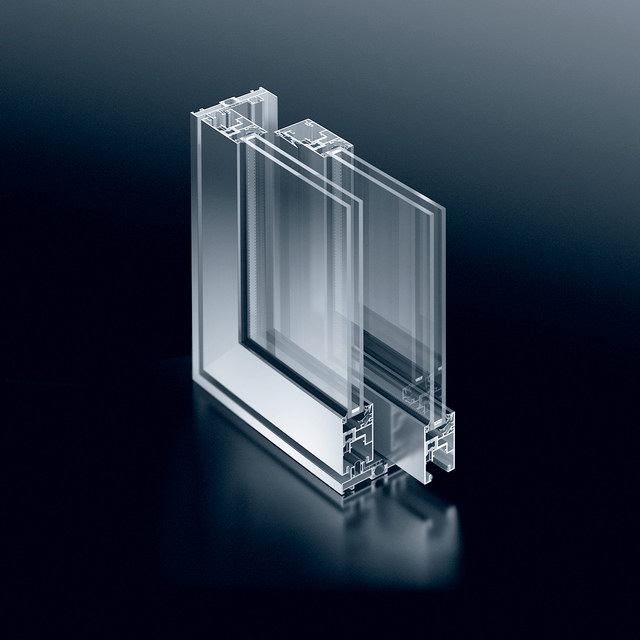

Thermal break lift & slide system, with total face width 112mm, with sheet 150kg, and sheet 300kg with face width 124mm.
A flexible solution offering many configuration options, such as double, triple or quadruple guide rail and INOX rolling.
Technical Characteristics
Dimensions
Frame profile depth: 120 mm
Frame face width: 38 mm
Maximum glass thickness: 8-32 mm
Maximum glass thickness: 32 mm
Sash profile depth: 50 mm
Sash face width: 84mm at 150kg / 96mm at 300kg
Mechanism: 150kg or 300kg mechanism with option for 400kg lifting mechanism
EPDM sealing gaskets
Profiles have straight form
Thin-section frame to perimeter frame
Many configuration options, choice among single, double or tripe guide rail and inox rolling
Charge groups in accordance with DIN EN 12207/12208/12210
Thermal Insulation: Uw 2,0 W/ m2Kfor the lifting system
Soundproofing up to Rw=40dB in accordance with DIN EN ISO 140-3
Burglar resistance up to RC2 in accordance with DIN V ENV 1627
Air permeability in accordance with DIN EN 12207 Class: 4
Water permeability in accordance with DIN EN 12208 Class: 9A
Wind pressure resistance in accordance with DIN EN 12210: Class: C4 / B4
Mechanical strength in accordance with DIN EN 13115 Class: 4
Functionality over time in accordance with DIN EN 12400 Class: 2
