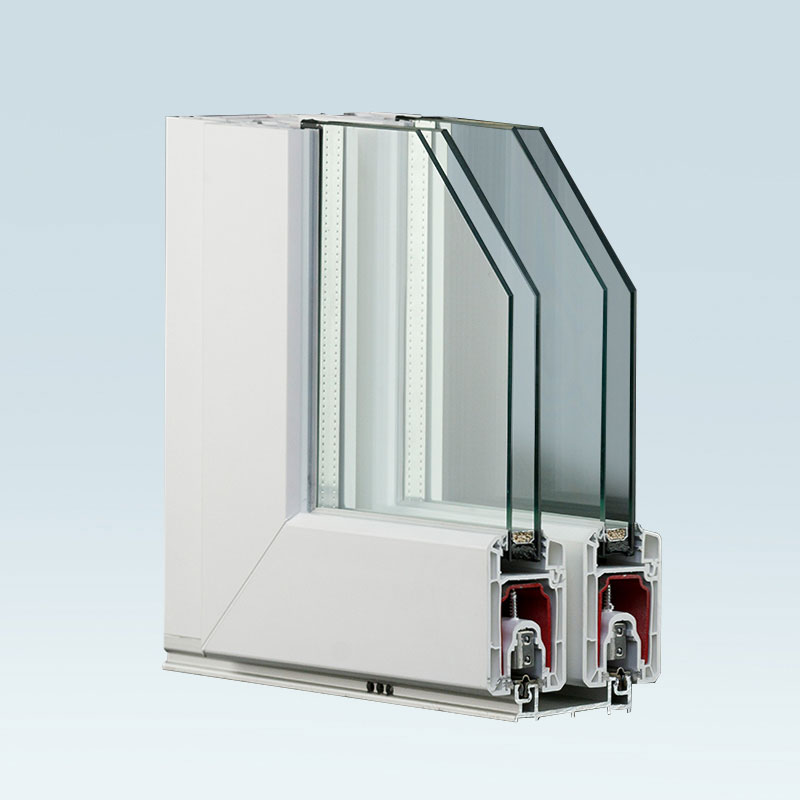

Standard sliding system, with double rails and aluminum plinth. Total face frame width is 137mm, while running is performed on INOX rails.
- Total view width 137mm
- Possibility of Double or Triple Rale Guide
- Double Glazing (24mm)
- In the options with an aluminum sill, the movement is made on Inox guides
Technical Characteristics
Dimensions
Frame profile depth: 144 mm
Frame face width: 43 mm
Maximum glass thickness: 21-24 mm
Sheet profile depth: 54 mm
Sheet face width: 84 mm
Sheet and casement reinforcement: thermogalvanised steel 1.5mm – 3mm thick
Mechanism: IN LINE (GU) and Siegenia sliding mechanism 80kg
Brush for sealing and integrated membrane
100% recyclable with eco-friendly stabilisers
With aluminum plinth 2cm high
